Product Description

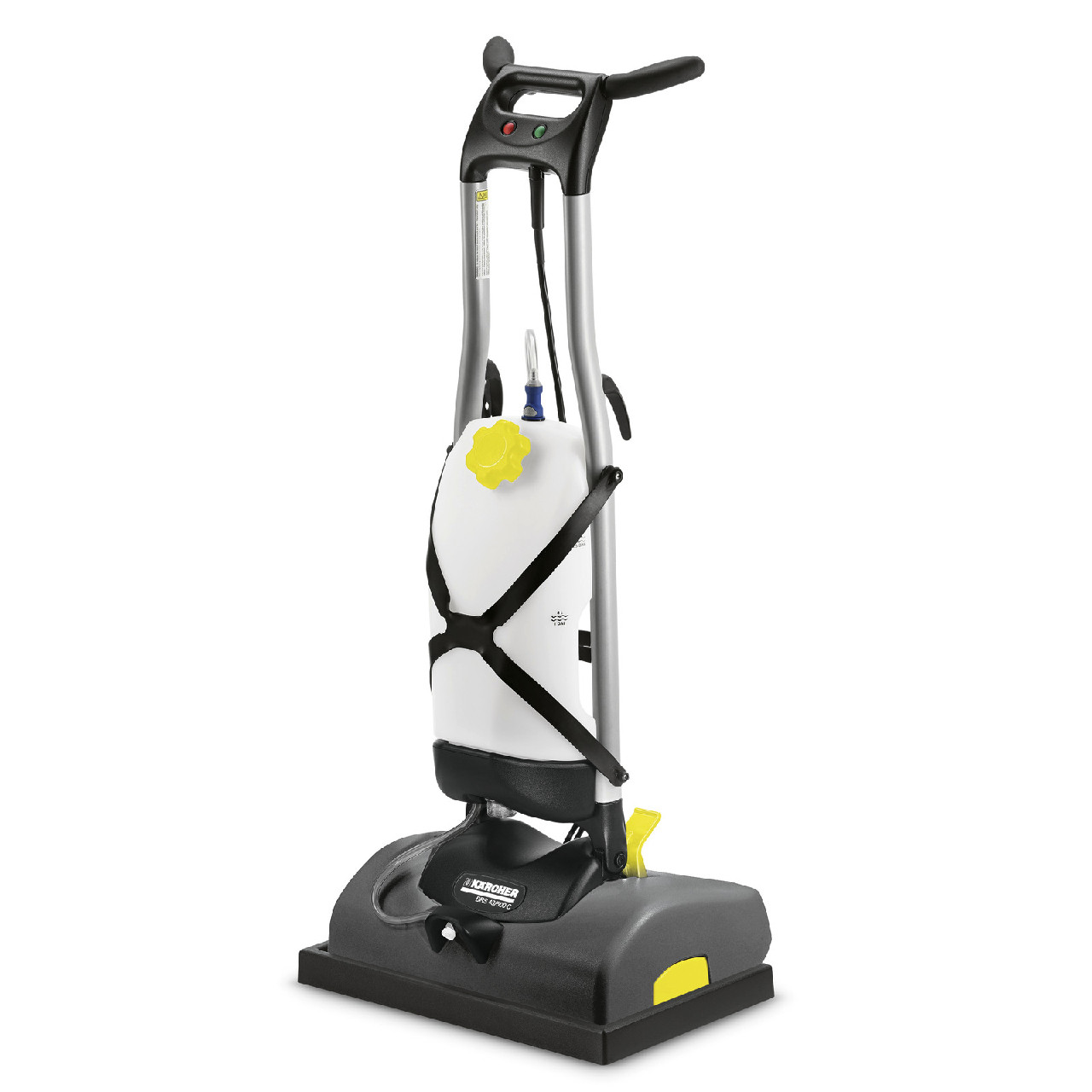

Karcher iCapsol BRS 43/500 C Deluxe
The Karcher iCapsol™ BRS 43/500 C Deluxe is a 17-inch low-moisture encapsulation carpet cleaner built for interim carpet maintenance in busy commercial spaces. It uses counter-rotating brushes and encapsulation chemistry to loosen soil, surround it, and allow it to dry into vacuumable crystals.
The Deluxe configuration includes a built-in 2-gallon spray tank, allowing solution to be applied directly from the machine during cleaning. This makes it a strong fit for offices, hotels, schools, retail spaces, healthcare facilities, and other carpeted areas where appearance and reduced downtime are important.
Quick Highlights
Recommended Applications
- Interim carpet cleaning between deep extraction cleanings
- Office buildings and commercial workspaces
- Hotels, hospitality areas, and conference spaces
- Schools, universities, and education facilities
- Healthcare waiting areas and administrative spaces
- Retail carpeted areas and public walkways
- Facilities that need faster drying times than traditional extraction
Key Features
Built-In Spray Tank
The Deluxe model includes an onboard spray tank system that applies encapsulation chemical directly onto the carpet during cleaning.
Low-Moisture Encapsulation
Encapsulation chemistry surrounds soil and dries into non-sticky crystals that can be removed by vacuuming after the carpet is dry.
Counter-Rotating Brushes
Two cylindrical brushes lift, groom, and agitate the carpet pile for more thorough chemical distribution.
Fast-Drying Interim Cleaning
Helps improve carpet appearance without closing off carpeted areas for long drying periods.
Best For
- Routine interim carpet maintenance
- Busy commercial areas with limited downtime
- Facilities using an encapsulation carpet care program
- Carpeted offices, hallways, classrooms, and hospitality spaces
- Cleaning teams that need a compact machine with onboard chemical spray
Not Ideal For
- Restorative deep extraction cleaning where soil must be flushed from the carpet backing
- Flood recovery or heavy wet pickup
- Hard floor scrubbing applications
- Facilities looking for a self-contained extractor with recovery tank suction
Specifications
- Manufacturer: Karcher
- Model: iCapsol™ BRS 43/500 C Deluxe
- Manufacturer Part Number: 1.006-714.0
- Cleaning Type: Low-moisture encapsulation carpet cleaning
- Working Width: 17 in
- Solution Tank Capacity: 2 gal
- Pump Pressure: 50 psi
- Water Consumption: 0.1 gal/min
- Power: 120 V, 1 Phase, 60 Hz
- Power Cord: 40 ft
- Operating Noise Level: 67 dB(A)
- Weight: 55.1 lb including packaging
- Dimensions: 16" L x 18" W x 45.5" H
- Brush System: Counter-rotating cylindrical brushes
- Estimated Productivity: Up to 6,458 ft²/hr based on the BRS 43/500 C platform’s listed area performance of up to 600 m²/hr
Included with the Machine
- Built-in 2-gallon spray tank system
- Counter-rotating cylindrical brush system
- 40 ft power cord
Cleaning Productivity
The Karcher iCapsol BRS 43/500 C Deluxe is built for fast interim carpet maintenance in busy commercial areas. Its low-moisture encapsulation process helps improve carpet appearance while reducing downtime compared to traditional wet extraction.
Based on the BRS 43/500 C platform’s listed area performance of up to 600 m²/hr.
Actual productivity may vary based on carpet layout, soil level, furniture, operator pace, chemical dwell time, and post-cleaning vacuuming.
Optional Accessories & Replacement Wear Parts
Common accessories and replacement wear parts for the Karcher iCapsol BRS 43/500 C Deluxe are listed below. Use the SKU links to search compatible parts and supplies.
Brushes
- Replacement Brush – SKU 8.621-485.0 replacement cylindrical brush for routine encapsulation carpet cleaning. Two brushes are required.
- Wool Carpet Brush – SKU 8.629-774.0 brush option for wool carpet applications. Two brushes are required.
Spray System Parts
- 2-Gallon Solution Tank – SKU 8.622-530.0 replacement solution tank for the built-in spray system.
- Encapsulation Jet – SKU 8.601-255.0 replacement spray jet for encapsulation solution application.
- Spray Tank Strap – SKU 8.622-497.0 replacement strap for securing the spray tank.
Optional Pre-Spray Accessory
- 2-Gallon Pump Sprayer with Wand – SKU 8.628-441.0 optional pump sprayer for separate pre-spray applications.
Recommended Chemicals
The Karcher iCapsol BRS 43/500 C Deluxe is designed for use with encapsulation carpet cleaning chemicals. These products help surround soil and detergent residue so the dried crystals can be removed by vacuuming after the carpet dries.
iCapsol Encapsulation Chemicals
- iCapsol™ Encapsulating Chemical, 4 x 1 Gallon Case – SKU 8.695-226.0
- iCapsol™ Encapsulating Chemical, 12 x 1 Pint Case – SKU 8.695-469.0
iCapsol Encapsulator / Protector
- iCapsol™ Encapsulator / Protector, 4 x 1 Gallon Case – SKU 8.695-227.0
- iCapsol™ Encapsulator / Protector, 12 x 1 Pint Case – SKU 8.695-470.0
- iCapsol™ Encapsulator / Protector, 5 Gallon Pail – SKU 8.695-643.0
Manuals and Documents
Free Demo Available
See if the Karcher iCapsol BRS 43/500 C Deluxe is the right fit for your carpet maintenance program. Monster Janitorial can help with equipment recommendations, chemical selection, replacement parts, and ordering support.
- Compare encapsulation cleaning vs traditional extraction
- Review the best setup for schools, hotels, offices, and commercial carpeted areas
- Get support with compatible chemicals, brushes, spray parts, and accessories
Questions? Email sales@monsterjanitorial.com or call 956-772-4842.
Replacement Parts and Manuals
Replacement brushes, spray system parts, solution tank parts, and additional wear items can be searched by SKU. If you are not sure which part is correct for your machine, contact Monster Janitorial with your model and serial number before ordering.
Manufacturer Warranty
Karcher commercial cleaning equipment is backed by Karcher North America’s limited warranty against defects in materials and workmanship under normal commercial use. Warranty coverage may vary by machine type, part category, maintenance history, and application.
Warranty Coverage Summary
- Commercial Machine Coverage: Covered under Karcher’s applicable commercial machine warranty policy
- Parts and Labor: Coverage varies by product class and warranty schedule
- Wear Items: Brushes, belts, hoses, seals, spray components, and other normal wear items are typically limited to manufacturing defects only
- Service Requirement: Warranty repairs must be completed by an authorized Karcher service provider
Normal Wear Items
Normal wear items and accessories, including brushes, belts, hoses, spray jets, tanks, straps, seals, gaskets, and similar maintenance items, may have limited coverage and are generally covered only for manufacturing defects.
Warranty Notes
- Warranty begins on the original purchase date and proof of purchase may be required.
- Machine serial number may be required for warranty claims.
- Damage caused by misuse, improper maintenance, unauthorized repairs, incompatible chemicals, freezing, or improper storage is not covered.
- Using non-approved parts, chemicals, or accessories may affect warranty eligibility.
- Routine maintenance, normal wear, and consumable replacement parts are the responsibility of the owner.
View Karcher Machine Warranty PDF
Questions? Email sales@monsterjanitorial.com or call 956-772-4842.
Frequently Asked Questions
Is the Karcher iCapsol BRS 43/500 C Deluxe a carpet extractor?
It is an encapsulation carpet cleaner, not a traditional hot water extractor. It uses low-moisture encapsulation chemistry and counter-rotating brushes instead of a recovery tank and extraction vacuum system.
What is the difference between the BRS 43/500 C and the Deluxe model?
The Deluxe version includes a built-in spray tank system for applying encapsulation chemical during cleaning.
How wide is the cleaning path?
The Kärcher iCapsol BRS 43/500 C Deluxe has a 17-inch working width.
What is the productivity rate?
The BRS 43/500 C platform has an estimated area performance of up to 6,458 ft²/hr based on a listed area performance of up to 600 m²/hr. Actual productivity may vary by layout, soil level, operator pace, furniture, and cleaning process.
Does the carpet need to be vacuumed after cleaning?
Yes. After the encapsulation chemical dries and surrounds the soil into crystals, the carpet should be vacuumed to remove the dried residue.
Is this machine good for deep restorative carpet cleaning?
This machine is best for interim carpet maintenance. For restorative deep cleaning, a commercial carpet extractor may be a better fit.
What type of chemical should be used?
Use approved encapsulation carpet cleaning chemicals, such as Karcher iCapsol products designed for low-moisture interim carpet cleaning.
