Product Description
XPOWER X-35AR & X-48ATR High-Temperature Axial Fan Series
Sealed-motor axial fans with variable-speed airflow, 360-degree positioning, heat-resistant construction, and a choice of compact 1,720 CFM performance or high-output 3,600 CFM airflow with a 3-hour timer.
High-Temperature Axial Fan Options
The X-35AR and X-48ATR are designed for professional heated-air circulation, restoration, structural drying, ventilation, and approved pest-remediation applications. Always follow the temperature limits and operating instructions listed for the selected model.
Product Overview
The XPOWER X-35AR and X-48ATR are professional axial air movers designed to circulate large volumes of air across floors, walls, ceilings, furnishings, and structural materials. Their sealed motors help protect internal components during demanding restoration and commercial drying applications.
The compact 14-inch X-35AR delivers up to 1,720 CFM from a 1/4 HP motor while drawing only 1.6 amps. Its variable-speed control and included rack provide flexible airflow from approximately 800 to 1,700 RPM.

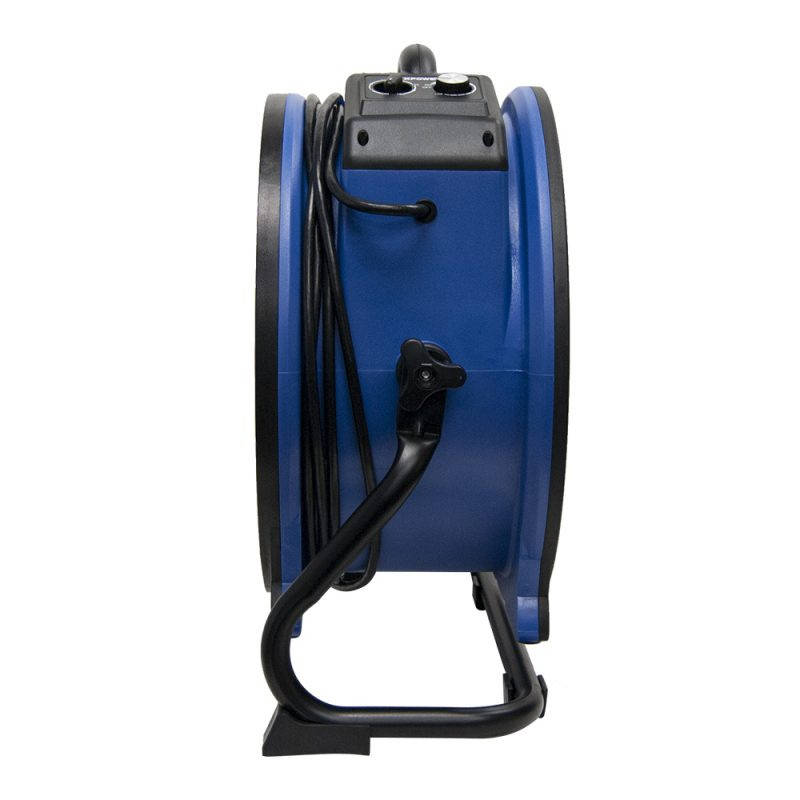

The larger 18-inch X-48ATR produces up to 3,600 CFM with a sealed 1/3 HP motor. It adds a built-in 3-hour timer for controlled operation during heat-treatment, structural-drying, and ventilation projects.
Quick Highlights
Choose Your Axial Fan
| Model | SKU | Fan Size | Airflow | Motor | Timer |
|---|---|---|---|---|---|
| X-35AR | MJXX35AR | 14 in | 1,720 CFM | 1/4 HP | No |
| X-48ATR | MJXX48ATR | 18 in | 3,600 CFM | 1/3 HP | 3 hours |
Recommended Applications
Helps distribute heated air across approved professional treatment and drying areas.
Supports evaporation from wet floors, carpet, walls, ceilings, framing, and building materials.
Moves high-volume air through affected rooms and across moisture-damaged surfaces.
Circulates heated air when paired with compatible professional heating equipment.
Provides adjustable air movement for construction, restoration, maintenance, and industrial projects.
The rotating rack directs airflow toward horizontal, vertical, overhead, and angled surfaces.
Professional Axial-Fan Features
Designed for demanding heated-air circulation and professional restoration environments.
Helps protect internal motor components from dust, contaminants, and moisture accumulation.
Adjust airflow to match room size, drying stage, surface type, ventilation demand, or treatment requirements.
Rotate the fan toward floors, ceilings, walls, furnishings, structural materials, and open room areas.
Added thermal safeguards help protect the motor and electrical system during demanding operation.
Provides extended reach across restoration zones, commercial rooms, hallways, and treatment areas.
Conserves storage space in restoration vehicles, warehouses, rental fleets, and equipment rooms.
Set the larger model for up to three hours of timed operation or select continuous use.
Model Performance Comparison
X-35AR Compact 14-Inch Fan
- 1,720 CFM rated airflow
- 1/4 HP sealed motor
- 1.6-amp electrical draw
- 800–1,700 RPM
- Variable-speed control
- 17.6-pound machine weight
- No timer
X-48ATR High-Output 18-Inch Fan
- 3,600 CFM rated airflow
- 1/3 HP sealed motor
- 2.8-amp electrical draw
- Variable-speed control
- Integrated 3-hour timer
- 360-degree positioning
- High-temperature construction
Technical Specifications
| Specification | X-35AR | X-48ATR |
|---|---|---|
| Monster Janitorial SKU | MJXX35AR | MJXX48ATR |
| Fan Size | 14 in | 18 in |
| Voltage / Frequency | 115 V / 60 Hz | 115 V / 60 Hz |
| Motor | 1/4 HP sealed motor | 1/3 HP sealed motor |
| Maximum Amp Draw | 1.6 amps | 2.8 amps |
| Rated Airflow | 1,720 CFM | 3,600 CFM |
| Speed Control | Variable speed | Variable speed |
| RPM Range | 800–1,700 RPM | 400–1,600 RPM |
| Timer | No | 3-hour timer |
| Rack / Stand | Included | Included |
| Operating Positions | 360° | 360° |
| Power Cord | 20 ft | 20 ft, 14 AWG |
| Housing | Injection-molded ABS and polycarbonate | Injection-molded ABS and polycarbonate |
| Stackable | Yes | Yes |
| Dual Thermal Protection | Yes | Yes |
| Machine Dimensions | 18.6 × 9.2 × 19.4 in | 21.9 × 9.8 × 22.5 in |
| Machine Weight | 17.6 lb | 25.6 lb |
| Shipping Dimensions | 19.7 × 17.7 × 10.6 in | 22.6 × 23.2 × 11.4 in |
| Shipping Weight | 19.8 lb | 31.6 lb |
| Safety Certification | See manufacturer documentation | ETL / CETL |
| Warranty | 1-year limited | 1-year limited |
| UPC | 848025041901 | 848025041352 |
Included with the Selected Fan
- Selected XPOWER X-35AR or X-48ATR axial fan
- Sealed professional-duty motor
- Variable-speed control
- Adjustable rack and stand
- 20-foot power cord
- Stackable fan housing
- 3-hour timer on X-48ATR
- Owner’s manual
Optional Accessories & Replacement Parts
Shop available XPOWER OEM components directly from Monster Janitorial. Confirm the fan model and serial number before ordering electrical or internal replacement parts.
Genuine replacement control knob for adjusting the integrated timer on the X-48ATR axial fan.
Compatible Model: X-48ATR
Part Number: 074-001
Monster SKU: MJX074001
Shop available OEM fan blades for compatible XPOWER axial fans and commercial air movers.
Compatibility: Verify the exact model and blade part number
View Fan BladeShop available speed-control switches, timer components, capacitors, circuit breakers, wiring, and electrical parts.
Compatibility: Model and serial-number verification required
Shop XPOWER PartsShop available replacement racks, adjustment knobs, bushings, fasteners, and positioning hardware.
Compatible Models: Confirm X-35AR or X-48ATR before ordering
Shop XPOWER PartsShop available inlet grilles, outlet grilles, housing panels, handles, feet, and protective components.
Compatibility: Verify fan size and housing configuration
Shop XPOWER PartsShop additional XPOWER ventilation, restoration, drying, and commercial axial-fan options.
Available Types: Standard, sealed-motor, variable-speed, and high-temperature fans
Shop XPOWER Axial FansManuals & Product Documents
Manufacturer Warranty
Both models are covered by a 1-year limited manufacturer warranty. Coverage is subject to XPOWER’s current terms, exclusions, proof-of-purchase requirements, proper operation, and authorized service procedures.
Frequently Asked Questions
The X-35AR is a compact 14-inch fan producing 1,720 CFM. The X-48ATR is an 18-inch fan producing 3,600 CFM and includes a 3-hour timer.
The X-35AR draws 1.6 amps. The larger X-48ATR draws 2.8 amps.
Yes. Both axial fans provide variable-speed airflow control.
No. The integrated 3-hour timer is included only on the X-48ATR.
Yes. The included rack provides 360-degree positioning for floors, walls, ceilings, furnishings, and structural materials.
Yes. Available XPOWER OEM parts can be purchased through Monster Janitorial. Confirm the exact model, serial number, and manufacturer part number before ordering.
No. Never operate electrical air-moving equipment while it is standing in water or positioned where it may fall into pooled water.
