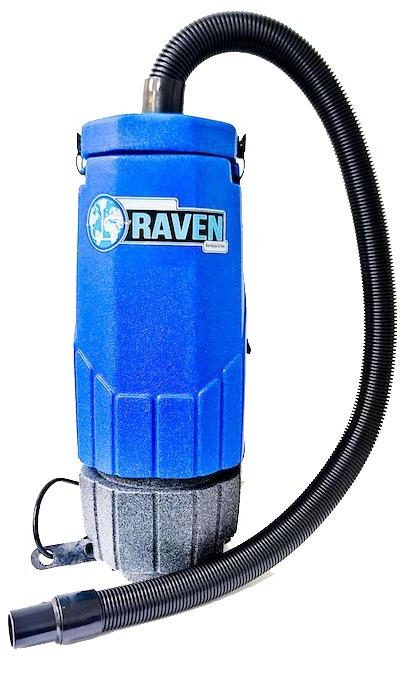

Aviation Raven 6 QT (70-5001) With Tool Kit
Below is a complete list of OEM replacement parts for the Sandia 70-5001 Aviation Raven 6-Quart Backpack Vacuum. Use this chart to identify part numbers and component descriptions for ordering repairs or replacements. Click any part number to search for availability on our store.
Download the full parts list and schematic: Sandia 70-5001 Aviation Raven 6-Quart Backpack Vacuum Parts Manual (PDF)
Sandia 70-5001 Backpack Vacuum – Parts List
| Part # | Description |
|---|---|
| 10-0005 | Toggle Switch, 15A 125VAC On/Off SPST |
| 10-0006 | Strain Relief 1/2" DIA |
| 10-0014 | Wire Harness, 2-Wire w/ Ground |
| 10-0025 | Plug, Male, 3-Prong Molded |
| 10-0028 | Motor Mount Gasket, Neoprene Foam |
| 10-0036 | Switch Box for Aviation Backpack |
| 10-0054 | Housing, Motor Cover Raven Style |
| 10-0055 | Motor Gasket Foam, Raven Backpack |
| 10-0056 | Motor, 2-Stage, 120V for Raven Backpack |
| 10-0058 | Exhaust Filter, Raven Backpack (HEPA) |
| 10-0062 | Top Cap, Black for Raven 6 Qt |
| 10-0074 | HEPA Media Filter Cartridge |
| 10-0082 | Cloth Shakeout Bag, Raven 6 Qt |
| 10-0087 | 6 Qt Vacuum Bag Filter, Paper (10/pk) |
| 10-0090 | Exhaust Gasket for Raven Motor Housing |
| 10-0093 | Inlet Filter Screen with Foam Pad |
| 10-0096 | Hose Cuff, Static Dissipating 1.5" |
| 10-0149 | Motor Mount Screw Kit, Raven Backpack |
| 10-0163 | Backplate Assembly with Harness |
| 10-0166 | Waist Belt Strap with Buckles |
| 10-0167 | Shoulder Strap Assembly, Adjustable |
| 10-0171 | Foam Pad Kit for Backpack Support |
| 10-0178 | Wiring Harness with Terminal Connectors |
| 10-0197 | Filter Bags, Paper, 6 Qt (10 pack) |
| 10-0500 | Tool Kit: Wand, Floor Tool, Upholstery Tool |
| 10-0502 | Crevice Tool, 1.5" |
| 10-0503 | Dusting Brush Tool, 1.5" |
| 10-0504 | Upholstery Tool, 1.5" |
| 10-0511 | Extension Wand, Aluminum 2-piece 1.5" |
| 10-0512 | Floor Tool, 14" with Brush Strip |
Need help finding a Sandia part or placing an order? Email tech@monsterjanitorial.com or call 956‑772‑4842.
