Product Description

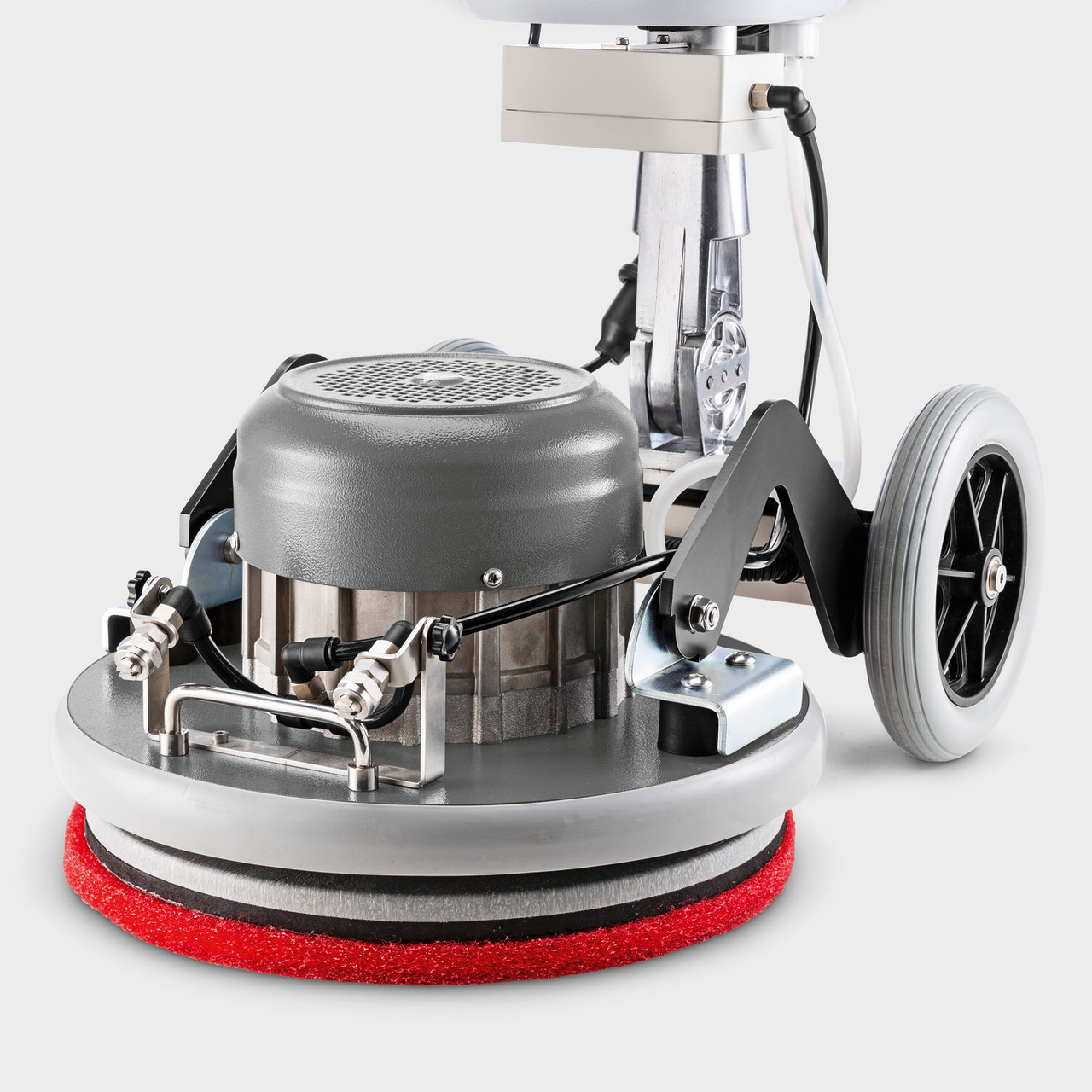

17" Orbital Floor Machine - 120V | Karcher BDS 43/Orbital C 1.291-254.0
The Karcher BDS 43/Orbital C is a heavy-duty 17 inch orbital floor machine engineered for versatility, durability, and performance. Featuring advanced ORB dual-motion technology, this machine delivers superior cleaning results while eliminating harsh vibration and unpredictable swing movement.
Designed for deep scrubbing, stripping, carpet cleaning, polishing, and stone restoration, the BDS 43/Orbital C provides professional-grade results across multiple floor types including marble, concrete, vinyl, stone, and carpet.
Professional Performance with ORB Technology
- True dual-motion orbital mechanics for even pad wear and improved productivity
- Reduced vibration for operator comfort and lower fatigue
- No unpredictable swing movement
- Quiet operation at 62 dBA
- Integrated spray nozzles for controlled solution application
- Reverse handle mode delivers up to 121 lb of pad pressure
Applications
- Deep scrubbing and restorative cleaning
- Floor stripping
- Carpet cleaning and encapsulation
- Stone polishing and crystallization
- Concrete and hard surface maintenance
Technical Specifications
- Manufacturer Part Number: 1.291-254.0
- Pad Size: 17 in
- Voltage: 120 V
- Phase: 1
- Frequency: 60 Hz
- Operating Noise Level: 62 dBA
- Power: 1 hp
- Cord Length: 40 ft
- Dimensions (L x W x H): 40.2 x 20.5 x 15 in
- Ship Weight: 132.3 lb
Applications
- Deep scrubbing and restorative cleaning
- Floor stripping
- Carpet cleaning and encapsulation
- Stone polishing and crystallization
- Concrete and hard surface maintenance
Recommended Chemicals & Accessories
Use the right chemicals and accessories for the job to improve results, reduce labor, and protect floors. Below are solid matches for the applications above.
- Compass Clean - Alkaline Hard Surface Cleaner (4 x 1 Gal) - Karcher 8.695-241.0 – Heavy-duty cleaner for deep scrubbing and restorative cleaning.
- Pioneer Eclipse Lumen L350 – Neutral All-Purpose Cleaner (4 x 1.06 Gal) – Neutral cleaner ideal for everyday maintenance of finished floors.
- 4 x 1 Gal Red Carpet iCapsol OA – Karcher 8.760-135.0 – Commercial carpet cleaner for deep carpet cleaning and encapsulation.
- 5 Gal Neutral Floor Cleaner – Karcher 8.698-103.0 – Low-foam neutral cleaner for finished floors after deep cleaning.
- Lumen L556 Heavy Duty Floor Stripper (4 x 1.06 Gal) - Pioneer Eclipse – High-performance stripper for removing built-up floor finish during stripping and restoration.
Accessories (Optional)
- Carpet Cleaning Pads (10 Pack) - 8.637-464.0
- Carpet Encapsulation Pads (5 Pack) - 8.637-466.0
- Chemical-Free Stripping Pads (10 Pack) - 8.637-467.0
- Melamine Pads (5 Pack) - 8.638-625.0
- Complete Stone Restoration Kit - 8.640-051.0
Manufacturer Warranty
The Karcher BDS 43/Orbital C is covered by Karcher North America's Limited Warranty against defects in materials and workmanship under normal commercial use.
- Machine Components: 2 Years Parts / 1 Year Labor
- Wear Items (pads, brushes, belts): 90 Days Parts
Manuals and Documents
- Operating Manual
- Safety Information
- Product Information Sheet
- Karcher Parts Manuals - Monster Janitorial
