14" Compact Cylindrical Walk-Behind Auto Scrubber | Lithium Battery | Karcher BR 35/12 C Bp

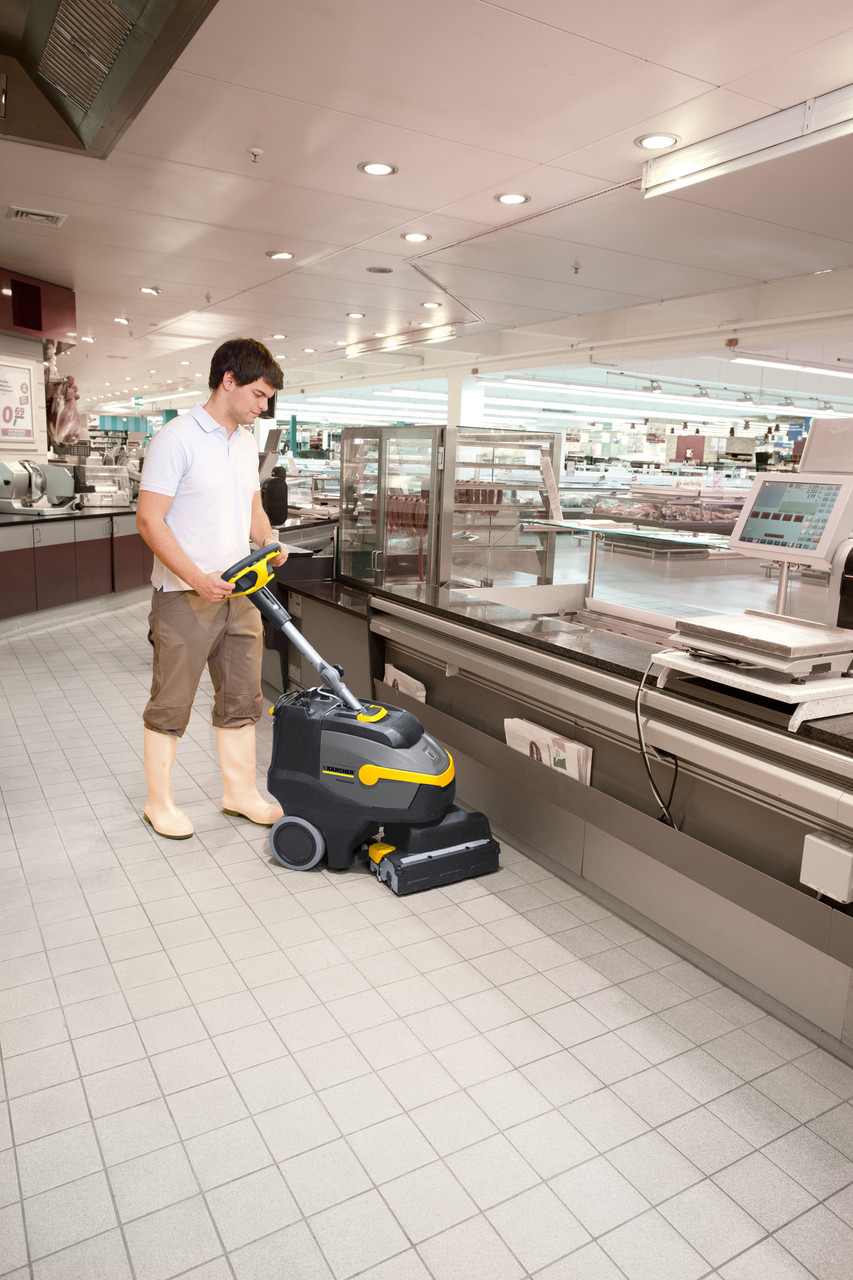

The Karcher BR 35/12 C Bp is one of the most agile compact auto scrubbers available for commercial facilities. Designed for tight areas and congested environments, this machine features a steerable cylindrical scrub deck that rotates up to 200 degrees, allowing operators to clean along walls, into corners, and around obstacles with exceptional precision.
This compact scrubber is ideal for schools, healthcare facilities, retail stores, restaurants, and office buildings where traditional walk-behind scrubbers are too large. The cylindrical brush design helps scrub floors while collecting light debris, making it perfect for daily maintenance cleaning in high traffic areas.
Quick Highlights
14 in cylindrical scrub deck | Steerable scrub head (200° rotation) | Lithium battery system | Compact design for tight spaces | Eco efficiency mode for longer runtime
14 in cylindrical scrub deck | Steerable scrub head (200° rotation) | Lithium battery system | Compact design for tight spaces | Eco efficiency mode for longer runtime
Key Features
- Steerable cylindrical scrub deck rotates up to 200 degrees for excellent corner cleaning
- Scrubs adjacent to walls at a 90° angle, eliminating blind spots
- Compact and maneuverable for congested environments
- Eco!efficiency mode extends runtime while reducing noise
- Tool-free cylindrical brush replacement
- Color-coded operator controls for simple operation
- Removable recovery tank for quick dumping and cleaning
- Adjustable telescoping handle for ergonomic operation
Specifications
- Model: Karcher BR 35/12 C Bp
- Manufacturer Part Number: 1.783-470.0
- MPN: MJK17834700
- Cleaning Width: 14 in
- Squeegee Width: 18 in
- Solution / Recovery Tank: 3.2 gal / 3.2 gal
- Drive Type: Brush assist
- Battery: Lithium-ion 25.2 V / 21 Ah
- Runtime: up to approx. 90 minutes (Eco mode)
- Charging Time: approx. 1–3 hours
- Brush Speed: 700–1050 rpm
- Brush Contact Pressure: 29 lb
- Operating Noise: 66 dBA (62 dBA Eco mode)
- Dimensions (L x W x H): 39 x 18 x 51 in
- Weight with Battery: approx. 77 lb
Included with this configuration
- Transport wheels
- 4.037-031.0 Cylindrical brush, red (medium)
- 4.037-035.0 Squeegee blade set, oil-resistant polyurethane
- 6.654-294.0 Lithium-ion battery (21 Ah)
- On-board battery charger
Optional Brushes and Pads
- 4.037-036.0 Cylindrical brush white (soft)
- 4.037-037.0 Cylindrical brush orange (high/low)
- 4.037-038.0 Cylindrical brush green (hard)
- 4.037-039.0 Cylindrical brush black (very hard)
- 4.037-040.0 Cylindrical microfiber pad for delicate floors
- 4.762-009.0 Cylindrical pad shaft
- 6.369-053.0 Cylindrical pad sleeve yellow
- 6.369-047.0 Cylindrical pad sleeve red
- 6.369-052.0 Cylindrical pad sleeve green
Recommended Chemicals
- Pioneer Eclipse Lumen L350 Neutral Cleaner
- Pioneer Eclipse Low-Foam Neutral Cleaner
- Karcher Heavy Duty Degreaser 8.698-154.0
Shop Cleaning Chemical Pods | Shop Auto Scrubber Chemicals
Manuals and Documents
- Operating manual / Safety information
- Operating manual / Safety information
- Operating manual / Safety information
- Product Information Sheet
FAQ - Cylindrical Brush Scrubbers
- What is a cylindrical brush scrubber?
A cylindrical scrubber uses rotating roller brushes instead of flat disc brushes. The rollers spin horizontally and help sweep up small debris while scrubbing the floor, allowing many facilities to clean and collect debris in a single pass. - What are the advantages of cylindrical brushes?
Cylindrical brushes help lift dirt, sand, and debris from textured flooring and grout lines. They are commonly used in schools, entryways, retail stores, and facilities where debris is frequently tracked inside. - Can cylindrical scrubbers clean along walls and corners?
Yes. Machines like the Karcher BR 35/12 C Bp use a steerable cylindrical scrub deck that rotates up to 200 degrees, allowing operators to scrub along walls and reach tight corners where larger machines cannot easily clean. - What types of floors are cylindrical scrubbers best for?
Cylindrical scrubbers work well on tile, VCT, sealed concrete, LVT, and textured flooring where debris may collect in grout lines or uneven surfaces. - Can this scrubber use pads instead of brushes?
Yes. The BR 35/12 can use optional cylindrical pad sleeves installed on a pad shaft. This allows the machine to use pad materials similar to traditional floor pads. - Why would someone use cylindrical pads instead of brushes?
Pads allow the scrubber to perform different types of cleaning depending on the floor and soil level. For example, green pads provide more aggressive scrubbing for heavy soil, while microfiber pads are used for delicate floors such as LVT or polished stone. Pads also allow facilities to follow standard floor pad color cleaning programs. - What cylindrical pads are available?
Optional cylindrical pad sleeves include yellow (soft cleaning), red (daily cleaning), and green (heavy scrubbing). A cylindrical microfiber pad is also available for delicate flooring such as LVT, tile, or stone.
Manufacturer Warranty
Karcher North America Limited Warranty
- 10 years - Polyethylene tanks and housings
- 3 years - Machine parts
- 3 years - Service labor through authorized service providers
- 5 years - Lithium-ion battery warranty
- 90 days - Wear items such as brushes and squeegee blades
