Product Description

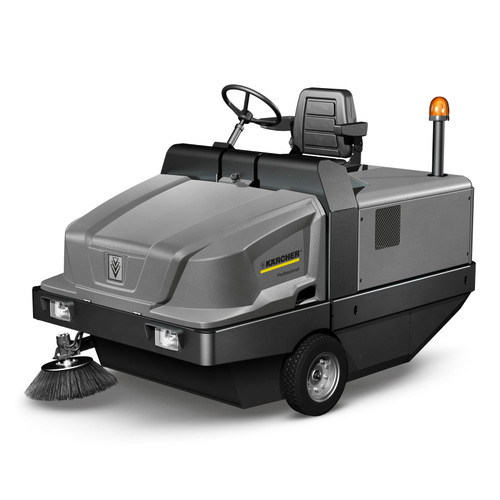

Karcher KM 130/300 R Bp 2SB Rider Floor Sweeper with Overhead Guard
The Karcher KM 130/300 R Bp 2SB is a heavy-duty battery powered rider floor sweeper designed for large-scale sweeping in demanding commercial and industrial environments. This configuration includes 2 side brooms and an overhead guard, making it a strong fit for schools, universities, municipal facilities, airports, warehouses, and industrial buildings that need high-capacity sweeping with zero-emission operation.
This rider sweeper (ride-on sweeper) is built for demanding jobs with easy cylindrical brush replacement without tools, a fully hydraulic drive and sweeping system, and a durable design for heavy dust and debris collection. The KM 130/300 platform is designed for facilities that need industrial sweeping performance in a compact rider platform, while still delivering strong productivity and debris capacity.
With up to 61 inches of sweeping width using two side brooms, a large 79.3 gallon waste container, and the benefits of quiet, zero-emission battery operation, the KM 130/300 R Bp 2SB is built for operators who need a durable industrial rider sweeper that can handle large indoor or outdoor areas efficiently without engine exhaust.
Recommended Applications
- Municipal and government facilities
- Schools, universities, and educational campuses
- Airports and transportation terminals
- Parking garages and large parking structures
- Warehouses and distribution centers
- Manufacturing facilities and industrial plants
- Convention centers and event venues
- Large commercial campuses and exterior hard surface areas
- Facilities with heavy dust, sand, or coarse debris
Key Features
- Heavy-duty battery rider sweeper built for large-scale industrial and commercial sweeping
- Two side brooms increase sweeping width for greater area coverage and higher productivity
- Easy cylindrical brush replacement without tools helps reduce maintenance time
- Fully hydraulic drive and sweeping system for durable long-term performance
- High working and transport speed helps operators cover more ground efficiently
- Large 79.3 gallon waste container helps reduce dumping frequency on larger jobs
- Flat pleat filter system supports effective dust control
- Overhead guard adds operator protection for more demanding environments
- Zero-emission operation supports indoor and noise-sensitive sweeping applications
- Battery powered design reduces noise compared with engine-powered alternatives
Why Choose a Battery Rider Sweeper?
This configuration uses battery power instead of LPG. Battery rider sweepers are often chosen for indoor or noise-sensitive areas where zero emissions, lower noise, and reduced engine maintenance are priorities.
- Zero-emission operation for indoor use
- Lower noise than LPG sweepers
- Strong fit for schools, hospitals, government, and public buildings
- No fuel handling required
How to Choose Between the KM 130/300 and KM 150/500 Versions
Karcher offers both the KM 130/300 and KM 150/500 platforms in multiple power and configuration options. This can be confusing for buyers, so here is the simple breakdown.
- KM 130/300 - Smaller hopper, narrower main broom, lighter machine, and a better fit for facilities that need industrial sweeping power in a more compact platform
- KM 150/500 - Larger hopper, wider sweeping path, heavier-duty design, and better for the largest debris loads and highest productivity requirements
- Bp versions - Battery powered, lower noise, zero emissions, stronger fit for indoor or noise-sensitive use
- Lpg versions - Engine powered, longer runtime, faster travel, stronger fit for outdoor or ventilated industrial applications
- 1 Side Broom versions - Narrower cleaning path and lower initial cost
- 2 Side Broom versions - Wider cleaning path for maximum productivity
- Overhead Guard versions - Added operator protection
- Front/Rear Lights or Working Lights versions - Improved visibility for darker work areas
Best For
- Municipal and government facilities with large sweeping areas
- Schools, universities, and public campuses that need zero-emission sweeping
- Airports, terminals, and public works operations
- Warehouses and industrial buildings needing a compact industrial rider sweeper
- Facilities that need dual side brooms and overhead guard protection included
- Operators who want a wider battery rider sweeper configuration for large open areas
Not Ideal For
- Facilities that prefer engine-powered machines for the longest uninterrupted runtime
- Outdoor-only applications where LPG may be preferred for extended shifts
- Facilities that require front/rear lights included from the factory
- Applications that require the larger hopper and heavier-duty capacity of the KM 150/500 platform
Specifications
- Manufacturer SKU: 9.841-330.0
- Machine Type: Rider Floor Sweeper
- Model: KM 130/300 R Bp 2SB
- Power Source: Battery / DC motor
- Power / Drive: 36 V / 5 kW / DC motor
- Theoretical Area Performance: 139,930 sq ft/hr (1SB) / 166,842 sq ft/hr (2SB)
- Working Width - Main Broom: 39 in
- Working Width with 1 / 2 Side Brooms: 51 / 61 in
- Waste Container Capacity: 79.3 gal
- Standard Charger Input Voltage: 120 VAC
- Climbing Capacity: 12%
- Working Speed: 4 mph
- Filter Area: 56 sq ft
- Weight: 2,900 lb
- Dimensions: 81 x 52 x 56 in
- Overhead Guard: Included
- Steel Case Battery: Included configuration
- Side Brooms: 2
Free Equipment Demonstration - No Obligation
Interested in seeing how the Karcher KM 130/300 R Bp 2SB rider floor sweeper performs in a real facility? Monster Janitorial can help arrange a demonstration so you can evaluate sweeping performance before purchasing.
- See how rider sweepers clean large facilities efficiently
- Compare rider sweepers vs walk-behind sweepers
- Review machine productivity, filtration, and debris handling
- Evaluate equipment performance for your facility type
- No obligation to purchase
To request a demonstration, email sales@monsterjanitorial.com or call 956-772-4842.
Included with the Machine
- Karcher KM 130/300 R Bp 2SB rider floor sweeper
- 2 side brooms
- Overhead guard
- Warning beacon
- Rear back-up alarm
- Steel hopper
- 6.987-438.0 - Main Cylindrical Brush, Regular, 39 in (1000 mm)
- 4.515-328.0 - Front Wheel, Solid Rubber, Puncture-Proof, Non-Marking (Set of 2)
- 6.988-158.0 - Flat Pleat Filter, Green (2 Required)
- 8.636-996.0 - Battery, 36V, 374 Ah Steel Case
- 8.640-032.0 - Battery Charger, 36V, Standard
- 6.987-083.0 - Side Brush, Regular
- 6.987-839.0 - Ignition Key
Optional Accessories and Replacement Wear Parts
- 6.987-439.0 - Main Roller Brush, Hard, 39 in (1000 mm)
- 6.987-460.0 - Main Roller Brush, Soft, 39 in (1000 mm)
- 6.987-440.0 - Main Roller Brush, Soft, Natural, 39 in
- 6.905-773.0 - Side Brush, Hard
- 6.905-620.0 - Side Brush, Soft
- 6.905-619.0 - Side Brush, Hard Steel Bristles
- 8.636-952.0 - Left Side Broom Kit (Factory Installed Option Only)
- 6.987-519.0 - Flat Pleat Filter, White (2 Required)
- 8.636-953.0 - Front/Rear Light Kit (Factory Installed Option Only)
- 8.638-973.0 - Water Spray Dust Control System (Factory Installed Option Only, LPG Only, 2 Side Brushes)
- 4.515-332.0 - Front Wheel, Pneumatic (Set of 2)
- 8.636-955.0 - Overhead Guard (Factory Installed Option Only)
- 8.636-956.0 - Overhead Guard with Windscreen and Wiper (Factory Installed Option Only)
- 8.636-957.0 - Closed Cab with Plastic Curtains (Factory Installed Option Only)
- 8.640-256.0 - Comfort Seat
- 8.636-889.0 - Dust Control Cover for One Side Brush (Factory Installed)
- 2.851-286.0 - Dust Control Cover for Field Install, One Side Brush
- 6.981-056.0 - HEPA Filter (2 Required)
- 8.639-416.0 - Battery Charger, 36V, High-Efficiency
Replacement Parts and Manuals
Manuals and Documents
- Operating manual / Safety information
- Operating manual / Safety information
- Operating manual / Safety information
- Product Information Sheet
Power and Configuration Options
The KM 130/300 family is available in several configurations, which can be confusing for buyers comparing part numbers. This machine is the battery version with 2 side brooms, overhead guard, and steel case battery setup.
- KM 130/300 R Bp - Battery powered version for zero-emission, lower-noise sweeping
- KM 130/300 R Lpg - LPG powered version for longer runtime and higher travel speed
- 1 Side Broom versions - Narrower sweeping width and lower initial cost
- 2 Side Broom versions - Wider sweeping width for maximum area coverage
- Overhead Guard versions - Added operator protection
- Front/Rear Lights versions - Improved visibility for darker work areas
- Standard Charger versions - Traditional charging setup
- High-Efficiency Charger versions - Improved charger performance, required in California and Oregon
Battery and Charger Options
The KM 130/300 R Bp uses a 36V battery system with a steel case battery. This configuration uses the standard charger and can be upgraded to the optional high-efficiency charger where preferred.
- Battery Version (This Machine) - Zero-emission sweeping for indoor or noise-sensitive applications
- Steel Case Battery Included - 8.636-996.0
- Standard Charger Included - 8.640-032.0
- High-Efficiency Charger Alternative - 8.639-416.0
Compared with LPG versions, the battery models are better for schools, hospitals, government buildings, and other environments where zero emissions and lower noise matter most.
Other KM 130/300 Configurations
- 9.841-326.0 - KM 130/300 R Bp STL
- 9.841-327.0 - KM 130/300 R Bp with Overhead Guard, STL
- 9.841-328.0 - KM 130/300 R Bp with Overhead Guard, Front/Rear Lights, STL
- 9.841-329.0 - KM 130/300 R Bp 2SB STL
- 9.841-331.0 - KM 130/300 R Bp 2SB with Overhead Guard and Front/Rear Lights, STL
- 9.841-332.0 - KM 130/300 R Bp STL High-Efficiency Charger
- 9.841-333.0 - KM 130/300 R Bp with Overhead Guard, STL, High-Efficiency Charger
- 9.841-334.0 - KM 130/300 R Bp with Overhead Guard, Front/Rear Lights, STL, High-Efficiency Charger
- 9.841-335.0 - KM 130/300 R Bp 2SB STL High-Efficiency Charger
- 9.841-336.0 - KM 130/300 R Bp 2SB with Overhead Guard, STL, High-Efficiency Charger
- 9.841-337.0 - KM 130/300 R Bp 2SB with Overhead Guard, Front/Rear Lights, STL
Explore Rider Floor Sweeper Configurations
The KM 130/300 series is available in multiple power and configuration options depending on facility needs. Browse similar machines below to compare sweeping width, power type, and debris capacity.
- Shop All Ride-On Floor Sweepers - Compare all commercial rider sweepers for large facilities.
- Battery Ride-On Sweepers - Zero-emission sweepers ideal for schools, hospitals, and indoor facilities.
- LPG / Propane Ride-On Sweepers - Long runtime sweepers designed for large outdoor or ventilated facilities.
- Industrial Ride-On Sweepers - Large-capacity machines for warehouses, airports, and public works.
Explore More Karcher Cleaning Equipment
Helpful Resources
- How to Choose a Floor Sweeper for Schools and Universities
- Best Floor Sweepers for Hospitals and Healthcare Facilities
- Commercial Floor Sweepers for Government Buildings
Manufacturer Warranty
The Karcher KM 130/300 R Bp 2SB rider floor sweeper is backed by the Karcher North America commercial equipment warranty program for professional sweeping equipment.
- 10 Years - Roto-molded polyethylene housing
- 3 Years - Parts
- 3 Years - Labor
- 6 Months - Travel coverage for on-site service
This warranty applies to defects in materials and workmanship under normal commercial use when serviced by an authorized Karcher service provider.
View the Full Karcher North America Machine Warranty (PDF)
Frequently Asked Questions
What is the advantage of the 2 side broom configuration with overhead guard?
This setup gives buyers a wider sweeping path plus added operator protection, making it a strong fit for large facilities and more demanding environments.
Why choose the battery version instead of the LPG version?
The battery version is typically chosen for indoor or noise-sensitive applications where zero emissions and lower operating noise are important.
What does this specific 9.841-330.0 configuration include?
This machine includes battery power, 2 side brooms, overhead guard, steel case battery setup, and the standard charger.
Can the main broom be replaced easily?
Yes. Karcher designed the KM 130/300 platform so the main cylindrical brush can be replaced without tools, helping reduce maintenance time.
Is this machine a good fit for indoor school or government facilities?
Yes. Compared with LPG versions, this battery configuration is often the better fit for schools, government facilities, and other environments where zero emissions and lower noise are important.
