Product Description

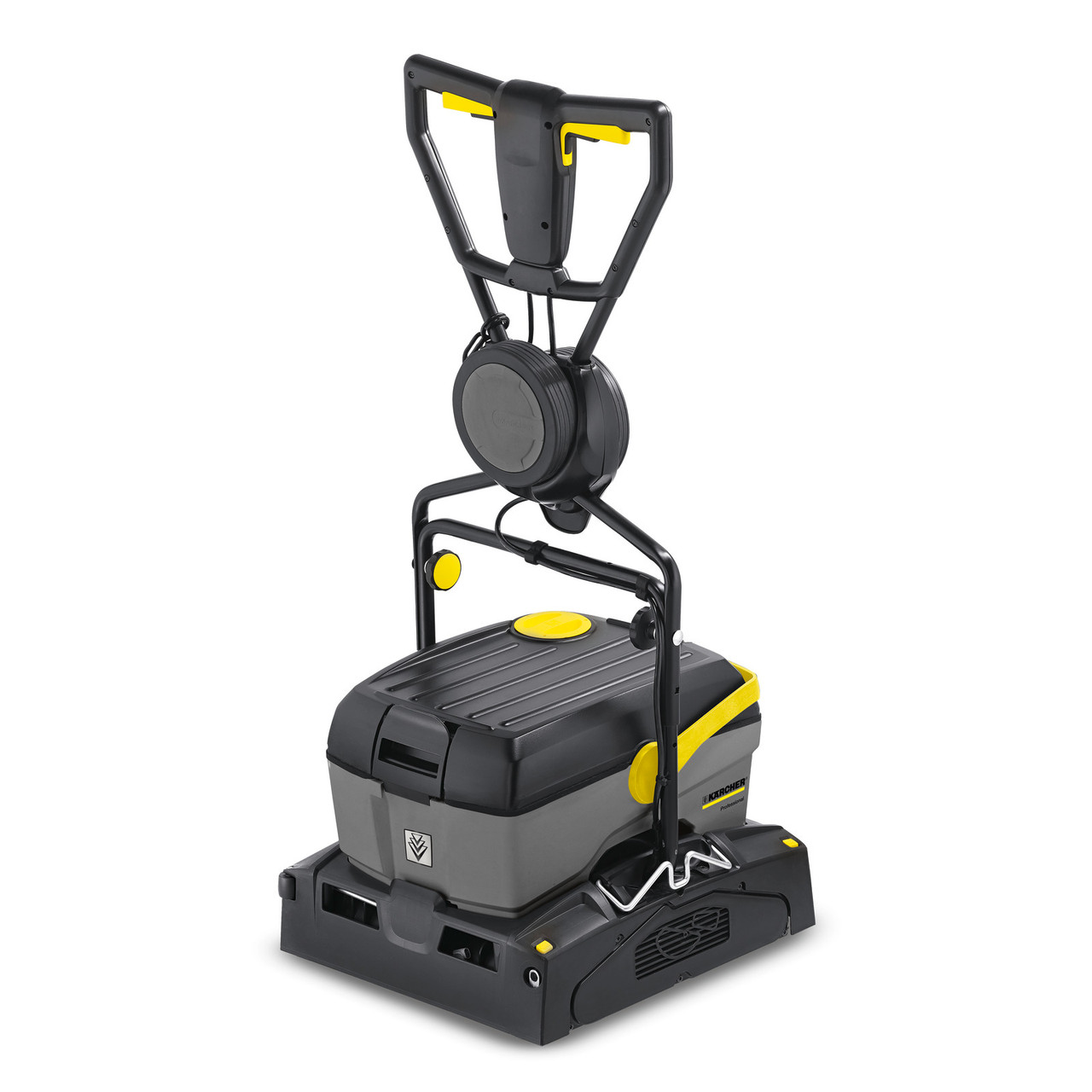

16" Compact Corded Cylindrical Floor Scrubber | Karcher BR 40/10 C Adv
The Karcher BR 40/10 C Adv is a compact professional floor scrubber designed for tight spaces where maneuverability and strong scrubbing performance are critical. The BR 40/10 C Adv combines multiple cleaning functions in one compact machine. It scrubs floors like a traditional floor machine, recovers dirty water like a wet vacuum, and can polish surfaces when used with cylindrical pads. This multi-purpose capability makes it ideal for facilities that want a single machine for scrubbing, maintenance cleaning, and light polishing.
Its dual high-speed cylindrical roller brushes provide powerful agitation while the twin squeegee system recovers water when moving both forward and backward. This makes the BR 40/10 ideal for small commercial spaces, retail stores, restaurants, healthcare facilities, and other environments where quick drying floors are important.
16 in cylindrical cleaning path | Dual high-speed roller brushes | Adjustable brush pressure | Corded continuous operation | Scrubs and recovers water in forward and reverse passes
Key Features
- Dual cylindrical brushes deliver strong scrubbing performance with adjustable contact pressure
- Twin squeegee design picks up water when moving forward or backward
- Compact design easily cleans around obstacles and tight areas
- Low profile scrub deck reaches under furniture and fixtures
- Folding push handle allows cleaning under low objects
- Removable tank for quick emptying and refilling
- Tool-free brush and squeegee replacement
- All major electrical components easily accessible for service
Recommended Applications
The Karcher BR 40/10 C Adv compact floor scrubber is designed for facilities that need powerful cleaning in tight spaces where larger auto scrubbers cannot operate.
- Retail stores and convenience stores
- Restaurants and commercial kitchens
- Schools and classrooms
- Healthcare and medical facilities
- Fitness centers and locker rooms
- Entryways and high traffic areas
- Hallways and narrow aisles
The Karcher BR 40/10 C Adv compact floor scrubber is designed for facilities that need powerful cleaning in tight spaces where larger auto scrubbers cannot operate. It is especially popular in schools, retail stores, healthcare facilities, and other environments with narrow aisles and frequent foot traffic.
Recommended Chemicals
- Pioneer Eclipse Lumen L350 Neutral Cleaner
- Pioneer Eclipse Low-Foam Neutral Cleaner
- Karcher Heavy Duty Degreaser 8.698-154.0
Shop Cleaning Chemical Pods | Shop Auto Scrubber Chemicals
Specifications
- Model: Karcher BR 40/10 C Adv
- Manufacturer Part Number: 1.783-312.0
- Cleaning Width: 15.75 in
- Squeegee Width: 15.75 in
- Solution / Recovery Tank: 2.6 gal / 2.6 gal
- Theoretical Productivity: 4,305 sq ft/hr
- Practical Productivity: 3,229 sq ft/hr
- Brush Speed: 650 rpm
- Brush Contact Pressure: 22.4 – 44.8 lb
- Sound Level: 71 dB(A)
- Power Supply: 120 V / 60 Hz
- Dimensions (L x W x H): 20.5 x 18.5 x 45.3 in
- Weight: 66 lb
Included with this machine
- Dual cylindrical roller brushes
- Twin squeegee system
- Transport wheels
- Foam applicator system
Replacement Wear Parts
- 4.777-097.0 Complete suction bar assembly (Included)
- 4.777-098.0 Oil-resistant suction bar replacement
Optional Cylindrical Roller Brushes
- 4.762-003.0 Red brush - medium (Included)
- 4.762-250.0 White brush - very soft
- 4.762-251.0 Orange brush - high/low
- 4.762-252.0 Green brush - hard
- 4.762-481.0 Black brush - very hard
- 4.762-254.0 Blue brush - soft
- 4.762-000.0 Green brush - medium hard
Optional Cylindrical Pads
- 4.762-228.0 Pad roller shaft
- 8.635-691.0 Brown roller pad
- 6.369-724.0 Yellow roller pad sleeve
- 6.369-726.0 Red roller pad sleeve
- 6.369-725.0 Green roller pad sleeve
- 4.114-004.0 Microfiber roller
Manuals and Documents
FAQ - Cylindrical Brush Floor Scrubbers
- What is a cylindrical floor scrubber?
Cylindrical scrubbers use rotating roller brushes instead of flat disc brushes. The rollers spin horizontally to scrub the floor while also helping sweep up light debris. - Why choose cylindrical brushes instead of disc brushes?
Cylindrical brushes clean grout lines and textured floors more effectively. They also allow small debris such as sand and grit to be collected while scrubbing. - Can cylindrical scrubbers use pads?
Yes. Cylindrical pad systems are available for polishing or lighter maintenance cleaning using pad sleeves installed on a roller shaft. - Where are cylindrical scrubbers commonly used?
They are popular in retail stores, schools, healthcare facilities, restaurants, and other environments with narrow aisles or frequent debris.
Manufacturer Warranty
Karcher North America provides a limited commercial warranty covering machine components, with wear items such as brushes and squeegee blades covered for manufacturing defects for ninety (90) days. Warranty service must be performed through an authorized Karcher service provider. Proof of purchase and serial number are required for warranty claims.
Replacement Parts and Manuals
Need parts diagrams, wear items, or service parts? Visit our Karcher manuals hub:
