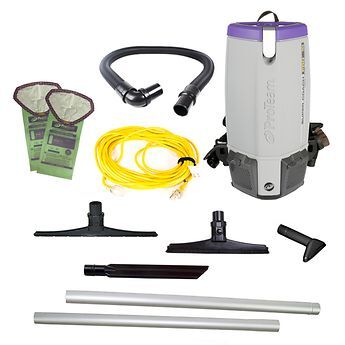

Super Coach Pro 10 Parts
Download the ProTeam SCP10 Parts Manual (PDF)
ProTeam Super Coach Pro 10 Parts List
| Part Number | Description |
|---|---|
| 101928 | Replacement Double Swivel Elbow Cuff 1.5" |
| 107648 | Static-Dissipating Hose (Black) w/Cuffs 1.5", 48 inches in length |
| 100694 | Replacement Double Swivel Straight Cuff (Black) 1.5" |
| 833948 | Purple Cap |
| 107313 | Intercept Micro Filter Bags for 10 Quart ProTeam GoFit 10 and Super Coach Pro 10 Commercial Backpack Vacuum Cleaners, 10-Pack |
| 834000 | Micro Cloth Filter, Fits Triangular 10 qt. Backpack Vacuums GoFit 10 and Super Coach Pro |
| 510179 | Latch and Retainer w/Lock Nut & Screw |
| 510180 | Gasket for Tank |
| 510183 | Dome Filter with Foam Filter Media for Select Triangular ProTeam Commercial Backpack Vacuum Cleaners |
| 510184 | Foam Filter Media for Dome Filter for 6 qt. and 10 qt. Triangular ProTeam Commercial Backpack Vacuum Cleaners |
| 510193 | Upper Motor Support w/Gasket for 6 qt. and 10 qt. Triangular Backpack Vacs |
| 833951 | Upper Motor Gasket |
| 836099 | Motor/Fan (120V Wolong) |
| 841933 | Carbon Brush Set (Wolong Motor) |
| 101720 | Carbon Brush Set (Ametek Motor) |
| 833952 | Lower Motor Gasket |
| 510185 | Cover Wire w/2 Screws |
| 510194 | Lower Motor Support, 5 Screws |
| 834042 | Triangular Lower Foam Pad |
| 834043 | Rectangular Upper Foam Pad |
| 808380-0 | Screw Pan CR #8 x .5" |
| 510188 | Housing Assembly Lower w/Screws |
| 107315 | Commercial-Grade HEPA Media Exhaust Filter for Triangular ProTeam Commercial Backpack Vacuum Cleaners, 2-Pack |
| 841708 | Exhaust Filter Door w/ Latch |
| 808380-22 | Screw Pan CR #8 x .75" |
| 836225 | Switch Box Full Assembly |
| 106066 | On/Off Switch (Must be Used with 106287) |
| 836554 | Switch Box without Power Cord |
| 836480 | Power Cord Assembly |
| 841724 | Power Plug Assembly for Super Coach Pro 6 / 10, ProVac FS 6 |
| 840112 | Upper Harness Assembly |
| 840011 | FlexFit Harness Assembly |
| 510192 | Tensioning Straps |
| 840114 | Lower Harness Assembly |
| 510738 | Cord Holder (yellow) |
| 510301 | Waist Belt Buckles and Straps Set |
| 834051 | 5/16" - 18 Lock Screw (2 Screws) |
| 510186 | Harness Spacers |
| 101678 | 50' 16-Gauge Extension Cord (Yellow) |
Need help finding a ProTeam part or ordering directly? Email tech@monsterjanitorial.com or call 956‑772‑4842.
