Product Description
Tornado BD 30/20 Walk-Behind Disk Scrubber - 30in, Traction Drive (TS530-W30-UG)
Powerful scrubbing performance with Day-One simple operation. The Tornado BD 30/20 is a commercial 30 inch walk-behind disk floor scrubber designed for fast, consistent cleaning in schools, retail, medical facilities, warehouses, and large multi-surface buildings. Dual 15 inch disks, strong vacuum pickup, and traction drive help deliver clean, dry floors with minimal training.
Key Features
- Dual 15 inch disks spinning at 160 RPM for strong daily scrubbing
- Up to 110 lbs down pressure to tackle heavier soils
- Powerful vacuum motor (570W) for improved water pickup and drier floors
- Traction drive for effortless movement and ramp support up to a 10% grade
- Large tank capacity - 20 gal solution / 22 gal recovery
- Inline solution filter helps prevent clogs and supports consistent solution flow
- Onboard charger - charge anywhere a standard outlet is available
- Easy-access controls - minimal training required

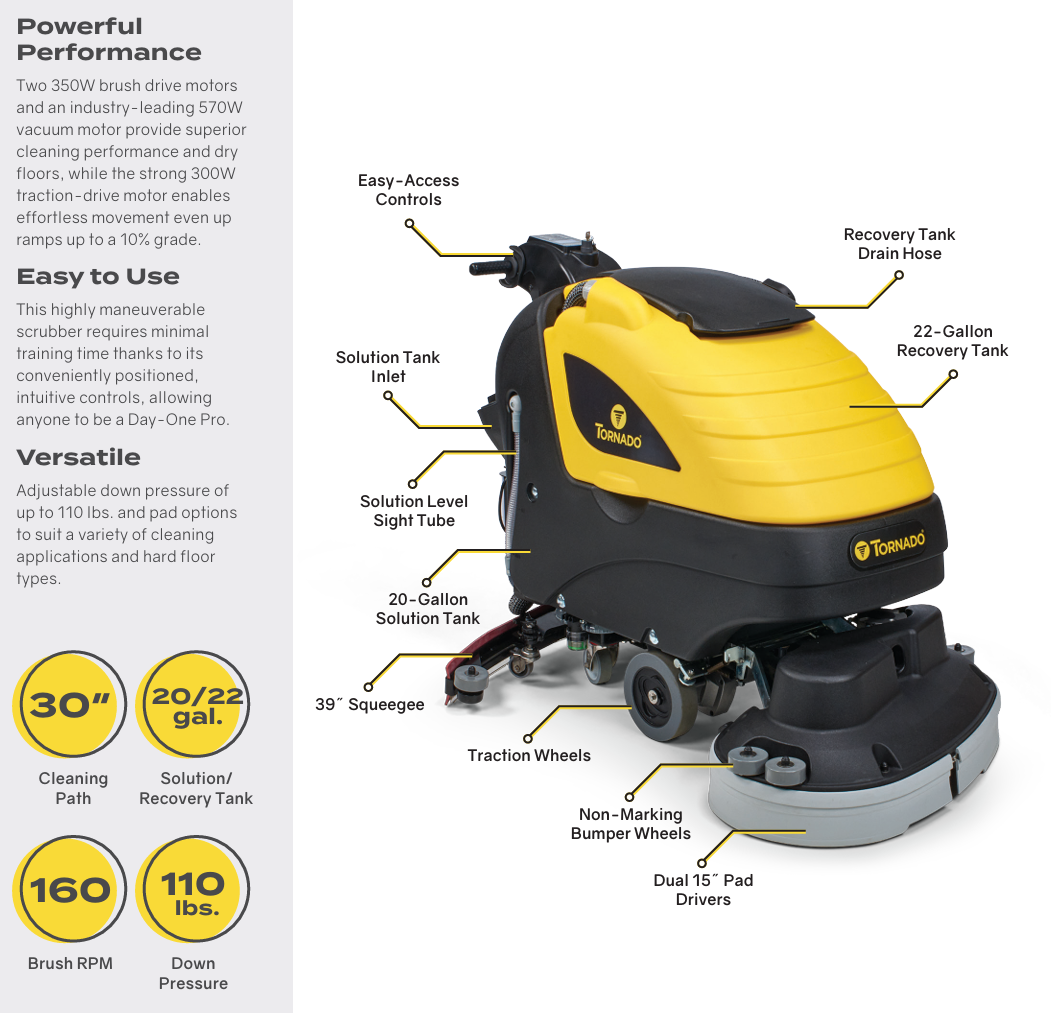

BD 30/20 Overview (Quick View)
Scrub Deck Option (Included in Price)
We include your choice of cleaning head option in the price so you get the setup that matches your floors.
- Option A (Recommended - Most Applications): Pad Driver (default)
- Option B: Brush Set (select floor type below)
- Soft Brush - smooth finished floors
- Medium Brush - light texture and grout
- Hard Brush - rough or heavily soiled floors
- 5-Mix Brush - aggressive scrubbing applications
If you are unsure which option is best, email sales@monsterjanitorial.com and tell us your floor type (VCT, LVT, sealed concrete, epoxy, tile/grout, etc.).
Product Specifications
- Model: TS530-W30-U (BD 30/20)
- Dimensions (L x W x H): 58.5 in x 30 in x 41 in
- Weight (without batteries): 225 lb
- Solution Tank: 20 gal
- Recovery Tank: 22 gal
- Squeegee Width: 39 in
- Cleaning Path: 30 in (2) 15 in disks
- Brush Pressure: Up to 110 lb
- Brush Speed: 160 RPM
- Brush Motor: 700 W
- Vacuum Motor: 570 W
- Vacuum Water Lift: 64 in
- Drive: Traction Drive, 0.4 HP
- System Voltage: 24V
- Run Time: 3-4 hours
- Charger: Onboard
- Battery Type: AGM (value-priced lead battery option)
- Sound Level: <70 dB(A)
- Productivity (theoretical max): 33,798 sq ft/hr
Replacement Items
Optional Accessories (Brushes and Pad Driver)
- 48814020 - Pad Driver
- 48914010 - Soft Brush
- 48914020 - Medium Brush
- 48914070 - Hard Brush
- 48914080 - 5-Mix Brush
Brochures and Manuals
Warranty
The Tornado BD 30/20 (TS530-W30-UG) is covered by Tornado's Commercial Limited Manufacturer Warranty against defects in materials and workmanship under normal commercial use. Warranty terms vary by component and product category. Wear items are not covered (squeegee blades, pads/brushes, hoses, and routine maintenance items).
Full warranty terms: Tornado Commercial Warranty (PDF)
