Product Description

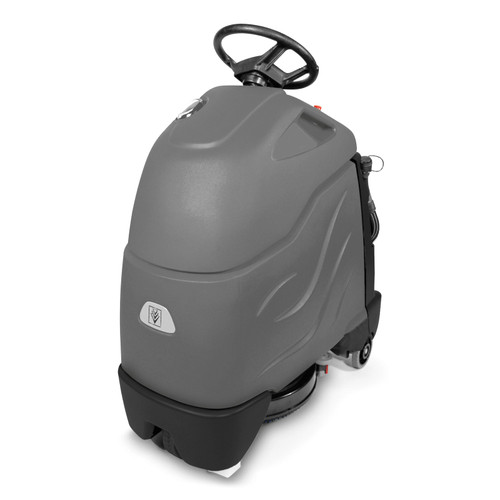

Karcher Chariot 2 iScrub 20 Deluxe with ORB Technology Stand-On Floor Scrubber for Top Scrubbing and Finish Removal
The Karcher Chariot 2 iScrub 20 Deluxe with ORB Technology combines the productivity of the Chariot stand-on platform with advanced dual-motion orbital scrubbing technology. This configuration includes a 20 inch ORB orbital pad driver, 36V / 114 Ah AGM batteries, and a 21A on-board charger for convenient charging directly from standard electrical outlets.
The Chariot stand-on design allows operators to clean faster with less fatigue while maintaining excellent maneuverability in tight spaces such as hallways, entrances, classrooms, retail aisles, and healthcare environments.
With practical productivity up to 18,000 square feet per hour, this machine delivers faster cleaning compared to traditional walk-behind scrubbers while also providing aggressive orbital mechanical cleaning action for top scrubbing and finish removal tasks.
What Is the Deluxe Version?
The Chariot 2 iScrub 20 Deluxe builds on the standard iScrub 20 platform with added convenience and usability features for facilities that want more flexibility in daily cleaning operations. Depending on configuration, Deluxe models may include on-board charging convenience, support for optional chemical metering, and transportation-friendly features such as a tie-down bar. It is a strong fit for facilities that want the productivity of the Chariot stand-on platform with added time-saving features.
What Is ORB Technology?
ORB Technology combines the productivity of the Chariot stand-on platform with a dual-motion orbital scrubbing system designed for top scrubbing, re-coating preparation, and chemical-free finish removal.
Unlike traditional spinning disc scrubbers, ORB technology produces thousands of 3/8 inch orbit contact points operating at 1,725 rpm while the deck simultaneously rotates at 80 rpm. This dual-motion scrubbing action provides significantly stronger mechanical cleaning performance.
This allows facilities to remove floor finish, perform top scrubbing, and prepare floors for recoating while reducing chemical usage, water consumption, and labor time.
Recommended Applications
- Schools and universities
- Hospitals and healthcare facilities
- Retail stores and supermarkets
- Government and municipal buildings
- Airports and transportation facilities
- Commercial office buildings
- Facilities performing top scrubbing and floor finish removal
Key Features
- Dual-motion ORB orbital technology provides stronger mechanical scrubbing action
- Ideal for top scrubbing, floor preparation, and finish removal
- Karcher Chariot stand-on platform increases productivity and reduces operator fatigue
- Quiet operation allows daytime cleaning
- 36V AGM battery system provides sealed battery operation with reduced maintenance
- On-board charger allows charging from any standard outlet
- Optional chemical metering system available
- Pre-programmed top scrub mode simplifies operation
- Karcher EASY Dial control system reduces operator training time
- Aqua-Mizer squeegee design maximizes water recovery
- Excellent 360 degree operator visibility
- Tight turning radius allows cleaning in narrow corridors
- Easy access recovery tank simplifies cleaning and maintenance
Best For
- Top scrubbing and re-coating programs
- Facilities removing floor finish
- Schools and healthcare buildings with large hard floor areas
- Operators wanting more productivity than a walk-behind scrubber
Not Ideal For
- Facilities that only require light daily scrubbing
- Users wanting cylindrical brush sweeping capability
- Extremely large warehouses better suited for ride-on scrubbers
Specifications
- Model: Chariot 2 iScrub 20 Deluxe with ORB Technology
- Manufacturer Part Number: 1.008-138.0
- Cleaning Path: 20 in
- Deck Type: ORB orbital pad driver
- Power Source: Battery
- Battery System: 36V / 114 Ah AGM
- Charger: 21A on-board charger
- Solution Tank Capacity: 10 gal
- Recovery Tank Capacity: 10 gal
- Vacuum Motor: 0.63 hp
- Water Lift: 47.3 in
- Operating Noise Level: 67 dBA
- Maximum Gradeability: 10%
- Working Speed: 2.4 mph
- Transport Speed: 2.4 mph
- Minimum Turning Radius: 2.13 ft
- Weight with Batteries: 676 lbs
- Dimensions: 44 x 27.2 x 51.75 in
- Practical Productivity: 18,000 sq ft/hr
Cleaning Productivity
The Chariot 2 iScrub 20 Deluxe platform can clean up to 50% more area than a traditional 20 inch walk-behind scrubber while also delivering superior orbital mechanical cleaning action.
- Practical productivity: 18,000 sq ft/hr
- Cleaning path: 20 inches
- Compact maneuverable footprint
- Improved productivity with s
Free Demo Available
Monster Janitorial can help you compare stand-on, walk-behind, and ride-on floor scrubbers to determine the best machine for your facility.
- Compare scrub deck technologies
- Evaluate stand-on vs walk-behind productivity
- Discuss battery and charging configurations
- Match the right machine to your facility size
Email sales@monsterjanitorial.com or call 956-772-4842 for assistance.
Included with the Machine
- Karcher Chariot 2 iScrub 20 Deluxe ORB scrubber
- 20 inch ORB orbital pad driver
- 36V / 114 Ah AGM batteries
- 21A on-board charger
- 10 gallon solution tank
- 10 gallon recovery tank
Optional Accessories and Replacement Wear Parts
- 8.632-606.0 Chariot Front Squeegee Linatex
- 8.632-607.0 Chariot Rear Squeegee Linatex
- 8.634-205.0 Front Squeegee Urethane
- 8.634-206.0 Rear Squeegee Urethane
- 8.639-259.0 Pad Driver 20"
- 8.640-378.0 Squeegee Blade Kit
- 8.600-486.0 Key Set
- Shop Floor Pads, Brushes, and Pad Drivers
Recommended Chemicals
- 350FS Pioneer Eclipse Lumen Neutral Cleaner
- 302FS Pioneer Eclipse Neutral Cleaner
- 8.698-154.0 Karcher Heavy Duty Degreaser
Replacement Parts and Manuals
Other Chariot 2 iScrub 20 Deluxe with ORB Technology Configurations
- 1.008-136.0 Chariot 2 iScrub 20 Deluxe ORB, 36V/130 Ah batteries, automatic charger
- 1.008-140.0 Chariot 2 iScrub 20 Deluxe ORB, 36V/114 Ah AGM batteries, automatic charger
- 1.008-138.0 Chariot 2 iScrub 20 Deluxe ORB, 36V/114 Ah AGM batteries, on-board charger
Explore More Karcher Cleaning Equipment
Helpful Resources
- How to Choose an Automatic Floor Scrubber for Schools and Government Buildings
- Shop Stand-On Floor Scrubbers
- Browse Karcher Cleaning Equipment
Manufacturer Warranty
Karcher commercial equipment is backed by a manufacturer warranty covering defects in materials and workmanship under normal commercial use.
Warranty Coverage Summary
- Lifetime: Rotationally molded polyethylene housings
- Lifetime: Major internal components
- 3 Years: Labor coverage when serviced by an authorized Karcher service provider
- 6 Months: Travel coverage for field service
- 90 Days: Manufacturing defects on normal wear items
Battery Warranty
Lead-acid batteries (including AGM batteries) are typically covered under the battery manufacturer’s warranty and are handled directly through the battery supplier.
Karcher Lifetime Scrubber Warranty (2025): https://shop.monsterjanitorial.com/content/Karcher/KNA%20Lifetime%20scrubber%20Warranty%202025.pdf
Battery and Charger Options
- 36V / 130 Ah batteries for extended runtime
- 36V / 114 Ah AGM batteries for sealed, maintenance-free operation
- Automatic charger for dedicated charging stations
- On-board charger allows charging from standard outlets anywhere in the facility
Stand-On Floor Scrubber vs Walk-Behind Scrubber Productivity
- Up to 50% greater productivity than comparable walk-behind machines
- Reduced operator fatigue
- Improved cleaning speed across large facilities
- Better visibility and maneuverability
Frequently Asked Questions
What is ORB Technology used for?
ORB Technology provides aggressive dual-motion orbital scrubbing that is ideal for top scrubbing, floor preparation, and finish removal.
Does this machine use pads or brushes?
This configuration uses an orbital pad driver designed to operate with floor pads.
What charger is included with this model?
The 1.008-138.0 configuration includes a 21A on-board charger.
